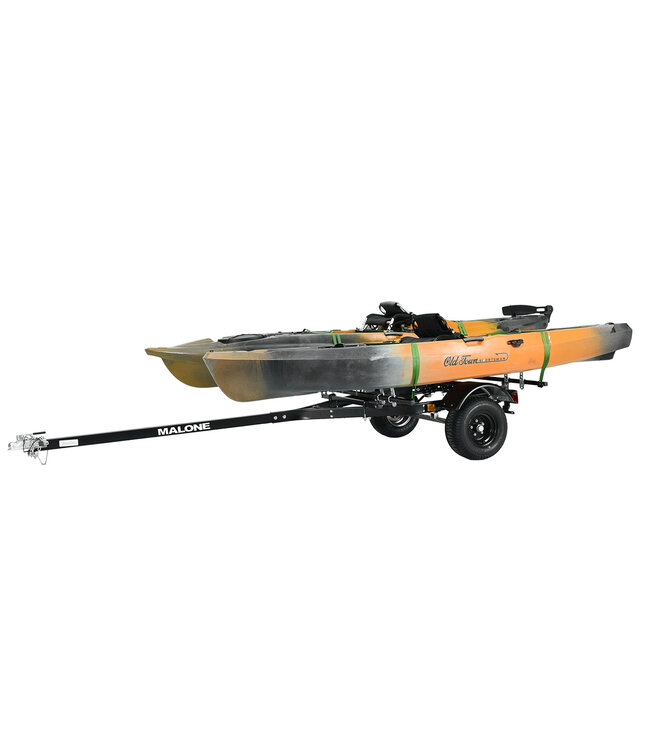

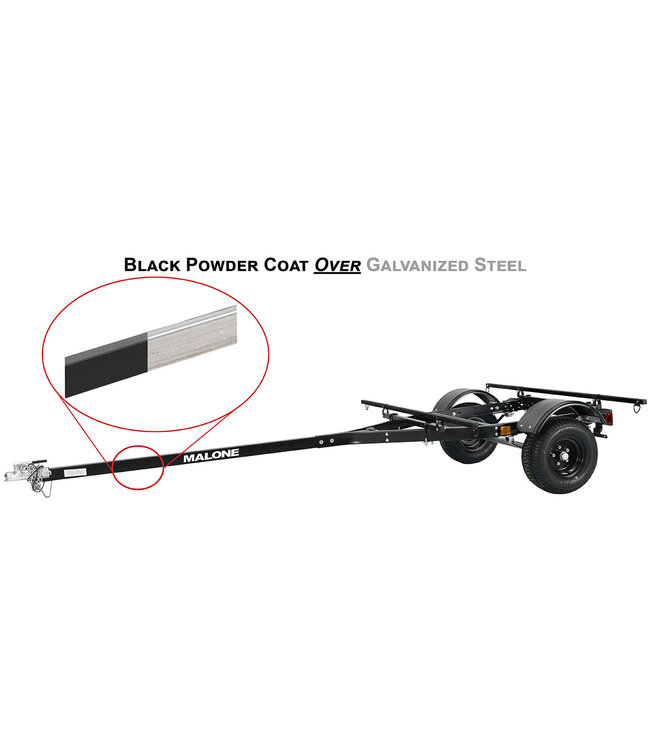

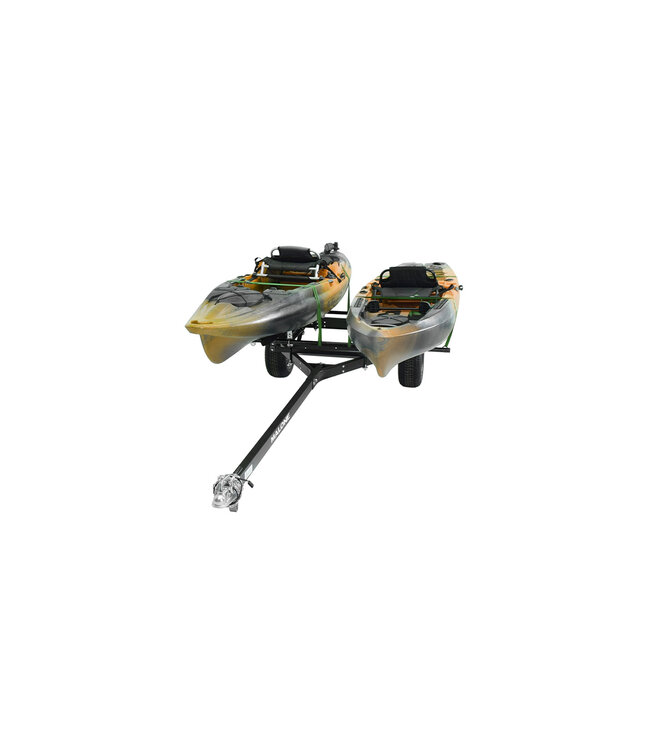

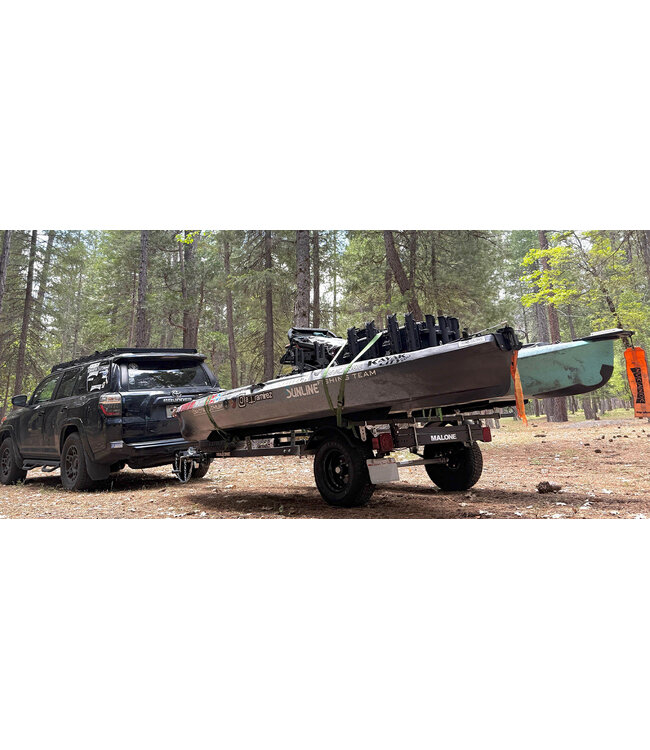

The MicroSport™ Off-Road LowBed™ Trailer is fully submersible and offers a unique Black powder coat over a pre-galvanized steel frame, creating one of the most rust-preventive coatings in the industry. This trailer is identical to the base MicroSport Off-Road trailer except with lowered crossbars for ease of loading. Each kit is comprised of a sturdy steel tongue, a “plug-&-play” LED submersible lighting system that meets DOT standards, 78" steel load bars, and large oversized pontoon tires. Backed by a Five-Year Limited Warranty and proudly crafted in the United States.

Assembles in 3-4 hours with common shop tools. Detailed assembly instructions included. (Fully assembled trailer is available for an extra flat fee)

Features

• MicroSport™ Off-Road LowBed™ Trailer

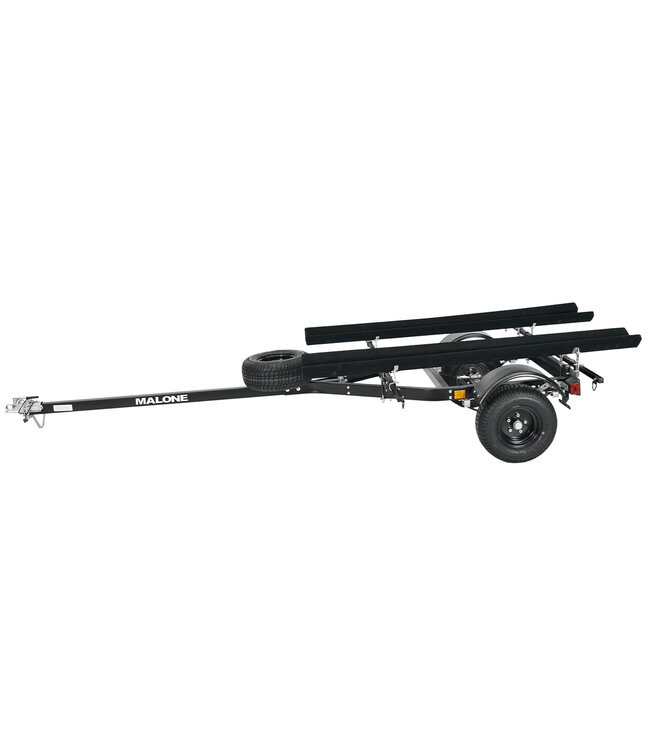

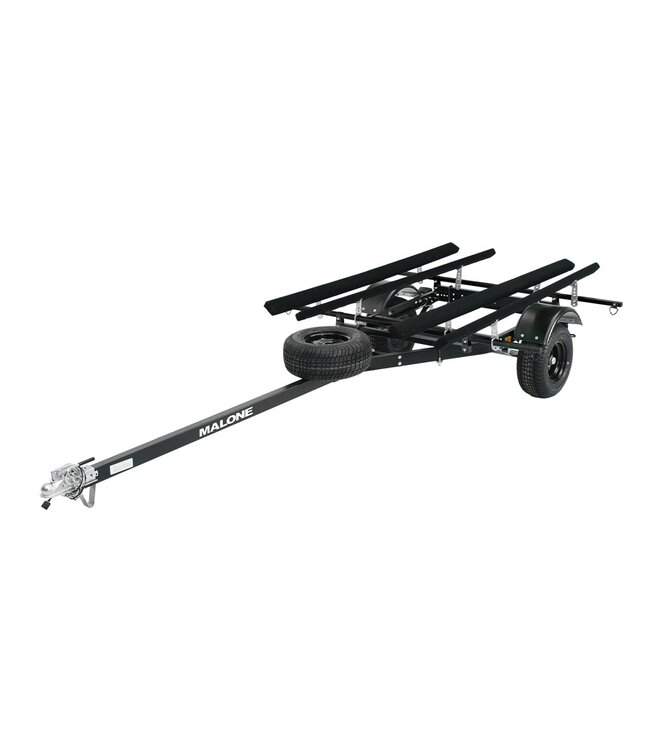

• Spare Tire for MicroSport™ Off-Road Trailer

• Large Kayak Bunk Kit with Mounting Hardware

• Lowered crossbar height to comfortably load kayaks and canoes

• Pre-assembled marine-grade sealed hubs for a clean and simple installation

• Oversized pontoon tires suitable for off-road travel

• Transport boats up to 20' in length

• 78’’ steel, 1 ¼’’ square load bars featuring D-ring tie-downs

• Pre-galvanized, black powder coated steel for excellent corrosion resistance

• “Plug & Play” Submersible LED light kit (DOT and Transport Canada approved)

• Five Year Limited Warranty – Made in the USA

Specifications

• Trailer load capacity: 800 lbs. / up to 20' long canoe or kayak

• Bunk Kit load capacity: 500 lbs. per kayak

• Length: 13' 3"

• Width: (without crossbars): 55"

• Frame width assembled: (width within fenders): 40"

• Total weight: 220 lbs.

• Frame: 11-gauge powder-coated, marine grade galvanized steel

• Required ball size: 2"

• Ball height: 18" from ground to top of ball

• Recommended tire pressure: 35 to 40 PSI

• Tongue weight (Unloaded): 25 lbs.

• Cross bar spread (Adjustable): 44" - 63"

• Cross Bar Length: 78”

• Height of cross bars from ground: 22"
